Introduction

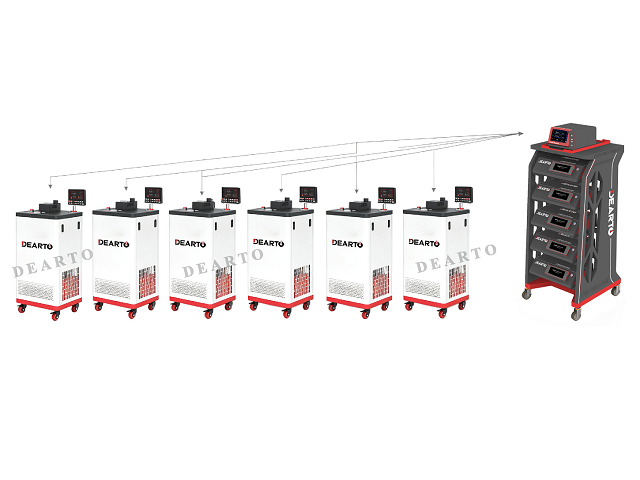

This intelligent, clustered automated calibration platform is designed for high-volume, multi-station temperature sensor calibration. It supports synchronous control of up to 8 temperature baths (cascadable to 64) and enables rapid deployment of a distributed network via automatic discovery and one-click configuration.
The system covers full-range calibration for Pt/Cu RTDs, NTC thermistors, and temperature transmitters, supporting 2-/3-/4-wire connections and multiple accuracy classes. It feat
Features and Advantages
| Scalable Cluster Expansion | Multi-bath Synchronous Temperature Control with Cascade Expansion: Supports synchronous temperature control of 8 baths, expandable to 64 baths; suitable for high-volume, multi-station calibration scenarios. |
| Automated Equipment Operation & Maintenance: Built-in bath communication parameter configuration and communication testing; supports automatic device search and one-click configuration. | |
| Full Compatibility with All UUT Types | Full Coverage of Multi-division RTDs: Supports Pt10, Pt100, Pt-X, Cu50, Cu100, etc.; covers AA, A, B, C classes and custom tolerances; R0 resistance is freely configurable; compatible with 2-wire, 3-wire, and 4-wire connections. |
| Flexible Adaptation for NTC Thermistors: Supports custom β coefficient and R25 parameters; compatible with various thermistor models; automatically performs detection and calculates β coefficient. | |
| Temperature Transmitter Adaptation: Supports configuration of transmitter range and accuracy parameters, meeting the calibration requirements of temperature transmitters. | |
| Multi-dimensional Measurement Items: Capable of calibrating core metrological parameters such as RTD temperature coefficient α, R0, temperature tolerance, and thermistor β coefficient. | |
| Flexible Configuration of Temperature Sources and Standards | Dual-type Temperature Source Support: Compatible with both baths and calibration furnaces; independently configurable temperature control parameters; supports automatic switching and management of temperature points. |
| Multi-standard Adaptability: Supports standard platinum resistance thermometers and S-type standard thermocouples; customizable standard switching temperature points; supports editing of standard fluctuation and testing time parameters. | |
| Dual Temperature Control Modes Available: Provides manual and automatic temperature control modes to suit different calibration scenarios. Parallel task allocation for multiple temperature sources, independent start/stop, and separate configuration of temperature point parameters. Intelligent PID temperature control algorithm with automatic determination of temperature stability. | |
| Efficient and Intelligent Group Calibration Functions | Multi-group Parallel Calibration: Supports synchronous calibration of 4 groups of different RTD division types; each group can be independently equipped with a standard; up to 999 measurement points per calibration process, meeting high-volume, multi-zone requirements. |
| Intelligent Bath Scheduling: Supports fixed bath and fixed point binding, where each calibration temperature point can be matched to a specific bath; software can also automatically match the optimal bath based on temperature points to achieve multi-bath collaborative scheduling. | |
| Data and Report Integration: Supports group calibration mode, automatically merging UUT data from multiple baths to generate unified calibration reports, significantly improving data processing efficiency. | |
| Full-process Visualization: Real-time display of heating and temperature control status for multiple baths; fully visualizes calibration progress and equipment operation. Automatically calculates deviation, correction value, and measurement repeatability; completes automatic uncertainty evaluation; automatically generates raw records and calibration certificates; supports custom templates, data export, and database traceability. |
